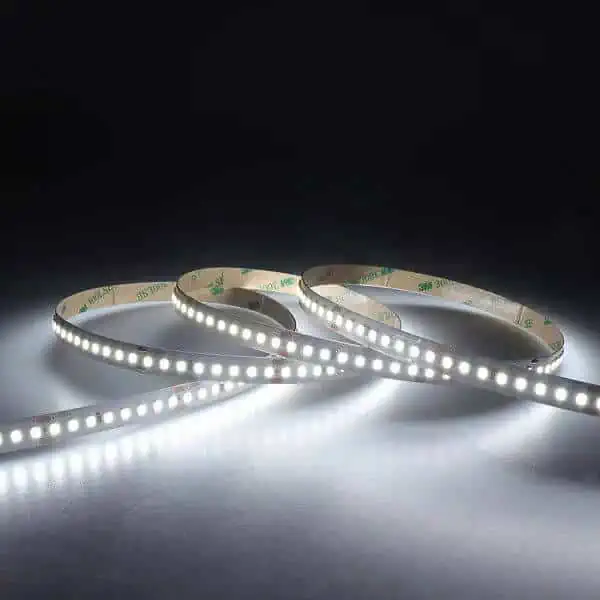

Ga ṣiṣe LED rinhoho

Ohun ti o jẹ Ga ṣiṣe LED rinhoho?

Gẹgẹbi orukọ naa ṣe daba, Imudani LED Iṣiṣẹ giga jẹ ṣiṣan ti o ni itọsọna pẹlu ipa itanna ti o to 184 LM/w. O nlo awọn eerun igi titobi nla ati awọn LED SMD2835 imọlẹ giga, awọn resistors ti o ni agbara giga, ati PCB 3OZ nipon. Awọn ila LED ti aṣa jẹ gbogbo awọn LED 6 ati awọn LED 3 (12V) fun gige kan, ṣugbọn awọn ila LED ti o ga julọ jẹ Awọn LED 9 fun gige tabi ẹgbẹ kan ti awọn LED 8 (24V). Awọn LED diẹ sii ti o ni ninu ẹgbẹ kan, diẹ sii lumens ti o gba.

Ga ṣiṣe Aimi White CRI80

Ga ṣiṣe Aimi White CRI90

Ga ṣiṣe Tunable White CRI90

Sipesifikesonu (SMD2835 Aimi White CRI80)

4.5W / 4.8W CRI80 IP20 / IP65 jara

Name LM / W download
4.8W 24V SMD2835 80leds 10mm Ra80 IP20&65 Kilasi DE ErP LED rinhoho ni pato 138 ~ 149LM/W
4.5W 24V SMD2835 90leds 10mm Ra80 IP20&65 Kilasi CD ErP LED rinhoho Specification 168 ~ 183LM/W

9W / 9.6W CRI80 IP20 / IP65 jara

Name LM / W download
9.6W 24V SMD2835 160leds 10mm Ra80 IP20&65 Kilasi DE ErP LED rinhoho ni pato 136 ~ 148LM/W
9W 24V SMD2835 180leds 10mm Ra80 IP20&65 Kilasi CD ErP LED rinhoho Specification 169 ~ 184LM/W

14.4W CRI80 IP20 / IP65 jara

Name LM / W download
14.4W 24V SMD2835 160leds 10mm Ra80 IP20&65 Kilasi DE ErP LED rinhoho ni pato 138 ~ 149LM/W
14.4W 24V SMD2835 192leds 10mm Ra80 IP20&65 Kilasi DE ErP LED rinhoho ni pato 138 ~ 150LM/W

19.2W CRI80 IP20 / IP65 jara

Name LM / W download
19.2W 24V SMD2835 192leds 10mm Ra80 IP20&65 Kilasi DE ErP LED rinhoho ni pato 137 ~ 148LM/W

Sipesifikesonu (SMD2835 Aimi White CRI90)

4.5W / 4.8W CRI90 IP20 / IP65 jara

Name LM / W download
4.8W 24V SMD2835 80leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho ni pato 102 ~ 116LM/W
4.5W 24V SMD2835 90leds 10mm Ra90 IP20&65 Kilasi D ErP LED rinhoho ni pato 161 ~ 169LM/W

9W / 9.6W CRI90 IP20 / IP65 jara

Name LM / W download
9.6W 24V SMD2835 160leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho ni pato 101 ~ 116LM/W
9W 24V SMD2835 180leds 10mm Ra90 IP20&65 Kilasi D ErP LED rinhoho ni pato 161 ~ 169LM/W

14.4W CRI90 IP20 / IP65 jara

Name LM / W download
14.4W 24V SMD2835 160leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho ni pato 98 ~ 112LM/W
14.4W 24V SMD2835 192leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho ni pato 109 ~ 119LM/W

19.2W CRI90 IP20 / IP65 jara

Name LM / W download
19.2W 24V SMD2835 192leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho ni pato 107 ~ 117LM/W
19.2W 24V SMD2835 240leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho ni pato 97 ~ 113LM/W

Sipesifikesonu (SMD2835 Tunable White CRI90)

Tunable White CRI90 IP20 / IP65 Series

Name LM / W download
Tunable White SMD2835 128leds 24V 9.6W 10mm IP20&65 Kilasi F ErP LED rinhoho ni pato 108 ~ 122LM/W
Tunable White SMD2835 160leds 24V 14.4W 10mm IP20&65 Kilasi F ErP LED rinhoho ni pato 102 ~ 115LM/W
Tunable White SMD2835 256leds 24V 19.2W 12mm IP20&65 Kilasi F ErP LED rinhoho ni pato 102 ~ 115LM/W

Iroyin idanwo (SMD2835 Aimi White CRI80)

4.5W / 4.8W CRI80 IP20 / IP65 jara

Name LM / W download
4.8W 24V SMD2835 80leds 10mm Ra80 IP20&65 Kilasi DE ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 138 ~ 149LM/W
4.5W 24V SMD2835 90leds 10mm Ra80 IP20&65 Kilasi CD ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 168 ~ 183LM/W

9W / 9.6W CRI80 IP20 / IP65 jara

Name LM / W download
9.6W 24V SMD2835 160leds 10mm Ra80 IP20&65 Kilasi DE ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 136 ~ 148LM/W
9W 24V SMD2835 180leds 10mm Ra80 IP20&65 Kilasi CD ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 169 ~ 184LM/W

14.4W CRI80 IP20 / IP65 jara

Name LM / W download
14.4W 24V SMD2835 160leds 10mm Ra80 IP20&65 Kilasi DE ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 138 ~ 149LM/W
14.4W 24V SMD2835 192leds 10mm Ra80 IP20&65 Kilasi DE ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 138 ~ 150LM/W

19.2W CRI80 IP20 / IP65 jara

Name LM / W download
19.2W 24V SMD2835 192leds 10mm Ra80 IP20&65 Kilasi DE ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 137 ~ 148LM/W

Iroyin idanwo (SMD2835 Aimi White CRI90)

4.5W / 4.8W CRI90 IP20 / IP65 jara

Name LM / W download
4.8W 24V SMD2835 80leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 102 ~ 116LM/W
4.5W 24V SMD2835 90leds 10mm Ra90 IP20&65 Kilasi D ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 161 ~ 169LM/W

9W / 9.6W CRI90 IP20 / IP65 jara

Name LM / W download
9.6W 24V SMD2835 160leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 101 ~ 116LM/W
9W 24V SMD2835 180leds 10mm Ra90 IP20&65 Kilasi D ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 161 ~ 169LM/W

14.4W CRI90 IP20 / IP65 jara

Name LM / W download
14.4W 24V SMD2835 160leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 98 ~ 112LM/W
14.4W 24V SMD2835 192leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 109 ~ 119LM/W

19.2W CRI90 IP20 / IP65 jara

Name LM / W download
19.2W 24V SMD2835 192leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 107 ~ 117LM/W
19.2W 24V SMD2835 240leds 10mm Ra90 IP20&65 Kilasi F ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 97 ~ 113LM/W

Iroyin idanwo (SMD2835 Tunable White CRI90)

Tunable White CRI90 IP20 / IP65 Series

Name LM / W download
Tunable White SMD2835 128leds 24V 9.6W 10mm IP20&65 Kilasi F ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 108 ~ 122LM/W
Tunable White SMD2835 160leds 24V 14.4W 10mm IP20&65 Kilasi F ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 102 ~ 115LM/W
Tunable White SMD2835 256leds 24V 19.2W 12mm IP20&65 Kilasi F ErP LED rinhoho Iṣajọpọ Sphere & Ijabọ Idanwo IES 102 ~ 115LM/W

Idanwo Ọja

Gbogbo awọn Strip LED ṣiṣe giga wa ko ni iṣelọpọ pupọ titi wọn o fi kọja nipasẹ awọn igbesẹ idanwo lile pupọ ninu ohun elo yàrá wa. Eyi ṣe idaniloju iṣẹ ṣiṣe giga ati iduroṣinṣin ati igbesi aye gigun ti ọja naa.

iwe eri

A nigbagbogbo ngbiyanju lati pese awọn alabara wa pẹlu iriri alabara ti o dara julọ ti o ṣeeṣe nigba ṣiṣẹ pẹlu wa. Ni afikun si iṣẹ alabara wa ti o dara julọ, a fẹ ki awọn alabara wa ni igboya pe awọn LED Strip Iṣiṣẹ giga wọn jẹ ailewu ati ti didara ga julọ. Gbogbo awọn LED Strip ti o ga julọ ti kọja CE, awọn iwe-ẹri RoHS lati rii daju iṣẹ ṣiṣe to dara julọ.

Idi ti Yan LEDYi

LEDYi jẹ ọkan ninu awọn aṣelọpọ LED Strip ti o gaju ti o gaju ati awọn olupese ni Ilu China. A pese ṣiṣan LED Didara giga ti o gbajumọ fun ṣiṣe giga ati idiyele kekere. Gbogbo awọn ila LED ti o ga julọ jẹ CE, ijẹrisi RoHS, ni idaniloju iṣẹ ṣiṣe giga ati igbesi aye gigun. A nfun awọn solusan ti a ṣe adani, OEM, awọn iṣẹ ODM. Awọn alataja, awọn olupin kaakiri, awọn oniṣowo, awọn oniṣowo, awọn aṣoju ṣe itẹwọgba lati ra ni olopobobo pẹlu wa.
