Rọ LED dì
- Ni irọrun ṣe apẹrẹ ni ayika awọn egbegbe ati awọn ekoro
- Awọn apakan gige fun awọn aṣa aṣa
- Pulọọgi-ati-mu ṣiṣẹ pẹlu awọn asopọ ori-ọkọ
- Eto LED iwuwo giga fun ina aṣọ (ko si awọn aaye to gbona)
- Atilẹyin alemora & awọn aaye skru-mount fun fifi sori irọrun
- Awọ ẹyọkan, White Tunable, RGBW, ati awọn aṣayan Pixel (SPI / DMX512).
ohun elo
Nibo ni awọn iwe LED to rọ ṣe jiṣẹ ina ẹhin ailopin kọja awọn iṣẹ akanṣe gidi.
LED dì Quick Ririnkiri
Ge, agbo, ọna asopọ, gbe soke, ati agbara-bẹrẹ lati pari.
LED dì Awọn ẹya ara ẹrọ
Ge LED dì si rẹ ààyò. Lori aaye, mu LED kan jade tabi ẹgbẹ kan ti Awọn LED.
Tẹ dì LED ni ayika awọn egbegbe fun ina ti nlọsiwaju lori awọn ibi isunmọ.
Iwe LED jẹ ẹya awọn asopọ plug-ati-play ti a ṣe apẹrẹ fun awọn iyipada didan laarin awọn iwe.
Bii awọn LED 3550 fun mita onigun mẹrin, pẹlu diode kọọkan nipa lilo 0.08 Wattis.
Ṣe itanna awọn ohun elo kan ni iṣọkan pẹlu aaye 9.5mm nikan.
Ṣe akanṣe CCT ti ara ẹni, foliteji, awọn iwọn, aye LED, awọn asopọ, iru lẹnsi, ati ikọja.
Titi di 3432 lumens fun dì, dì LED pese awọn lumens to
Mọ awọn LED rinhoho dì on-ojula fun ohun gangan baramu.
Awọn ẹya ẹrọ plug-in ti o rọrun lati lo jẹ apẹrẹ lati so awọn iwe LED pọ lainidi.
LED dì Series
Yan iwe LED to rọ ti o baamu kọ rẹ. Gbogbo jara pese itanna dì LED aṣọ ni awọn cavities tẹẹrẹ, ge ni eyikeyi itọsọna, agbo lori awọn egbegbe, ati ọna asopọ pẹlu lori-ọkọ plug-ati-play asopo — ko si soldering.
Yan lati Nikan Awọ (Static White), Tunable White, RGBW, ati Pixel (adirẹsi) fun awọn apoti ina, awọn ami ami, awọn iṣiro soobu, ati awọn odi ẹya. Gbogbo jara ṣiṣẹ lori 24 VDC ati fi sori ẹrọ pẹlu atilẹyin alemora tabi awọn aaye skru-mount fun awọn fifi sori ẹrọ to ni aabo.
Iwe boṣewa 503.5 × 235 mm (awọn iwọn miiran ati OEM/ODM ti o wa). Ọpọ sheets le pin ọkan orisun agbara; ojuami kikọ sii gbero lati iwọntunwọnsi fifuye.
Nikan Awọ LED dì
Nṣiṣẹ lori 24 VDC, nronu Nikan-CCT yii wa ni 11 W / 22 W / 33 W fun iwe kan ati jiṣẹ to 3,432 lm fun dì (ti o gbẹkẹle awoṣe). Ifilelẹ 503.5 × 235 mm boṣewa gbejade Awọn LED 420 SMD2835 fun didan, itankale aṣọ.
Cuttable ati rọ fun ibamu lori aaye: agbo lori awọn egbegbe, ọna asopọ pẹlu awọn asopọ plug-ati-play lori-ọkọ, ati gbe soke nipa lilo atilẹyin alemora tabi awọn aaye skru-mount fun awọn fifi sori ẹrọ to ni aabo.
Tunable White LED dì
Iwọn 503.5 × 235 mm, pẹlu 840 SMD2835 Awọn LED, iwe kọọkan nṣiṣẹ lori 24 VDC ati pe o funni ni awọn aṣayan agbara 22 W / 44 W / 66 W (igbejade ti o gbẹkẹle awoṣe). O jẹ iwe LED to rọ o le ge ni awọn itọnisọna mejeeji ki o ṣe agbo lori awọn egbegbe fun ibamu deede.
Lori aaye, awọn panẹli ọna asopọ pẹlu awọn asopọ plug-ati-play lori-ọkọ, lẹhinna gbe soke nipa lilo atilẹyin alemora tabi awọn aaye skru-mount. Ṣiṣẹ pẹlu awọn olutona TW (ati PWM/0–10 V/DALI nipasẹ awọn awakọ) fun awọn iwoye ati dimming.
RGBW LED dì
Kọọkan 503.5 × 235 mm dì awọn ẹya 800 SMD2835 Awọn LED ati ṣiṣẹ lori 24 VDC, pẹlu awọn aṣayan agbara 11 W / 22 W / 33 W (igbejade ti o gbẹkẹle awoṣe). Iwe LED to rọ yii jẹ gige ni awọn itọnisọna mejeeji ati pe o le ṣe agbo lori awọn egbegbe fun ibamu deede.
Lori aaye, awọn panẹli ọna asopọ pẹlu awọn asopọ plug-ati-play lori-ọkọ, lẹhinna gbe soke nipa lilo atilẹyin alemora tabi awọn aaye skru-mount fun awọn fifi sori ẹrọ to ni aabo. Nṣiṣẹ pẹlu awọn olutona RGBW (DMX/0–10 V/PWM nipasẹ awọn decoders ibaramu) fun dapọ awọ didan ati dimming.
SPI Pixel LED dì
Ọkọọkan 503.5 × 235 mm awọn ẹya ara ẹrọ 800 SMD2835 LED ti a ṣeto bi 50 awọn piksẹli RGBW ti o le adirẹsi. O nṣiṣẹ lori 24 VDC pẹlu agbara ti o gbẹkẹle awoṣe titi di ≈92 W fun iwe kan. Iwe LED to rọ le ge ni awọn itọnisọna mejeeji ati ṣe pọ lori awọn egbegbe. Awọn panẹli ṣopọ pọ nipasẹ awọn asopọ plug-ati-play lori-ọkọ ati pe o le gbe soke nipa lilo atilẹyin alemora tabi awọn aaye skru-mount.
Ẹya yii n ṣiṣẹ pẹlu awọn olutona ẹbun ati pe o le ṣepọ sinu ọpọlọpọ awọn iṣeto ina nipasẹ SPI. O ṣe atilẹyin aworan aworan didan ati ṣiṣiṣẹsẹhin ipele.

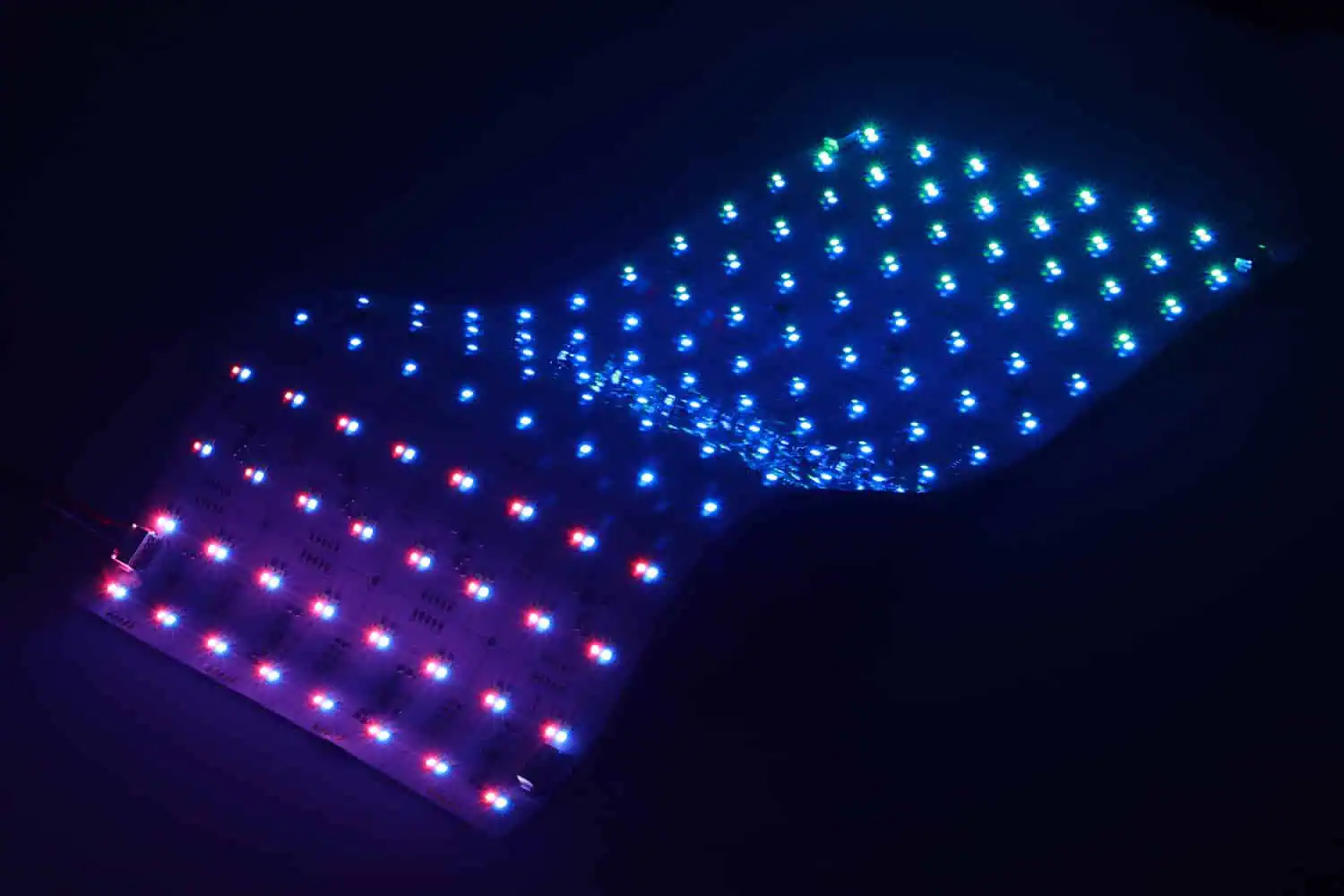

DMX512 Ẹbun LED dì
Awọn akopọ LED ti o rọ yi 512 SMD2835 Awọn LED ti a ṣeto bi awọn apakan ẹbun 32 RGBW fun dì (Awọn LED 16 fun ẹbun) fun awọn gradients didan ati aworan agbaye deede. Nṣiṣẹ lori 24 VDC pẹlu agbara ti o gbẹkẹle awoṣe (≈5-32 W fun dì), o pese imọlẹ CRI 90 + pẹlu awọn aṣayan CCT lati 1800 K si 6000 K. Iwe naa le ge ni awọn itọnisọna mejeeji ati ki o tẹ soke si 90 °, pẹlu fifi sori ẹrọ rọrun nipasẹ 3M adhesive backing or screw-mount points.
Pẹlu iṣakoso DMX512 abinibi, awọn asopọ PI/PO plug-ati-play inu ọkọ gbe agbara mejeeji ati data A/B/GND fun daisy-chaining laarin awọn panẹli — ko si oluyipada ita gbangba ti o nilo — fifun ọ ni adirẹsi DMX taara ati ṣiṣiṣẹsẹhin aye ailopin kọja gbogbo awọn piksẹli.
LED dì Demos
Igbẹkẹle & Idanwo
Ṣaaju iṣelọpọ ibi-pupọ, jara kọọkan lọ nipasẹ photometric, igbẹkẹle, ati awọn idanwo ailewu lati rii daju iduroṣinṣin, isunmi aṣọ ni aaye.
certifications
Fun awọn iwe-ẹri alaye ati awọn ijabọ idanwo, jọwọ ṣabẹwo si oju-iwe iwe-ẹri wa - wo gbogbo awọn iwe-ẹri →
Nipa LEDY
LEDYi jẹ olupilẹṣẹ alamọdaju ti awọn ina rinhoho LED ati awọn solusan neon-flex fun ayaworan, soobu ati awọn iṣẹ akanṣe. A ṣiṣẹ pẹlu awọn apẹẹrẹ, awọn olugbaisese, ati awọn olupin kaakiri agbaye lati pese ina didara, awọn ipele deede ati ifijiṣẹ akoko.
Kọ ẹkọ diẹ sii Nipa LEDYi
Kí nìdí yan LEDYi
- Idojukọ Ẹka - a ṣe amọja ni awọn ila LED & Flex neon
- Didara iduroṣinṣin - iṣelọpọ inu ile, awọn idanwo ti ogbo, ati QC ti o muna
- Ijẹrisi ifọwọsi - awọn laini ọja ni idanwo si UL / ETL / CE / RoHS
- Awọn iwe aṣẹ ti o ṣetan-iṣẹ – awọn fọto metiriki, awọn aworan onirin, fi awọn itọsọna sori ẹrọ
- Awọn aṣayan ti a ṣe deede — CCT/CRI, gigun, awọn opiki, awọn idari (DALI/DMX/RGBW)
- Atilẹyin idahun - awọn apẹẹrẹ, awọn akoko idari iyara, iranlọwọ imọ-ẹrọ
Ìwé jẹmọ
Fun awọn itọsọna diẹ sii ati bi-si, jọwọ ṣabẹwo si bulọọgi wa. Wo gbogbo nkan →
FAQ
Ni ọpọlọpọ igba, LED sheets pese aṣọ esi ni tẹẹrẹ cavities pẹlu kan to dara diffuser. Ijinle gangan da lori jara, olupin kaakiri, ati ohun elo. Pin iwọn ati ijinle rẹ ati pe a yoo ṣe afiwe apẹrẹ kan fun ọ.
Gbogbo jara nṣiṣẹ lori 24 VDC. Nikan-CCT dims nipasẹ PWM / 0-10 V / DALI (nipasẹ awakọ). Tunable White nlo awọn olutona TW; RGBW ṣiṣẹ pẹlu awọn olutona RGBW; Pixel ṣe atilẹyin SPI tabi iṣakoso DMX512.
Bẹẹni-ge lẹgbẹẹ awọn laini ti o samisi ki o ṣe agbo ni ayika awọn egbegbe. Jeki aaye to kere ju ki o yago fun jijẹ kọja awọn idii LED.
Bẹẹni. Nikan-CCT ṣe atilẹyin PWM/0–10 V/DALI (nipasẹ awakọ ibaramu). TW/RGBW/Pixel dim ati yi awọ pada nipasẹ awọn oludari wọn.
O da lori agbegbe ina, ijinle, ati jara. Fi awọn iwọn rẹ ranṣẹ (ijinle L × W ×) ati ibi-afẹde CCT/jara — a yoo da ipalemo kan pada & BOM.
RGBW parapo awọ pẹlu kan ifiṣootọ funfun ikanni fun mimọ funfun. Awọn iwe piksẹli ṣafikun awọn ẹgbẹ ti o le adirẹsi ọkọọkan fun awọn ipa ati aworan agbaye (SPI tabi DMX512).
Awọn apẹẹrẹ boṣewa nigbagbogbo gbe ni awọn ọjọ 3-5; ise agbese ibere 2-4 ọsẹ da lori iṣeto ni ati opoiye.
Standard si dede wa ninu ile. Kan si wa fun encapsulation tabi aabo aṣa ti o ba nilo ita gbangba tabi lilo ọriniinitutu giga.
A pese Atilẹyin Ọdun 5 labẹ awọn ipo iṣẹ deede. Ipele kọọkan jẹ idanwo-laabu-awọn fọto pẹlu awọn ijabọ IES/spekitiriumu lori ibeere, pẹlu ti ogbo / sisun, gigun kẹkẹ-ọriniinitutu, ati awọn sọwedowo aabo itanna-lati rii daju iduroṣinṣin, ifẹhinti aṣọ ni aaye.
Ifowoleri yatọ nipasẹ jara, iṣelọpọ, ati iwọn aṣẹ. Pin ipalẹmọ rẹ fun agbasọ lẹsẹkẹsẹ pẹlu awọn awakọ ti a ṣeduro/awọn oludari.
